Dynals v2.0 is a completely rewritten version of Dynals. The first version of Dynals released in 1996 has proved itself as the fastest, reliable and user-friendly software for Particle Size Distribution analysis in Photon Correlation Spectroscopy also known as Quasi Elastic or Dynamic Light Scattering).
Dynals uses proprietary, NTSVD algorithm for solving the associated ill-posed mathematical problem.
Dynals v2.0 includes the old as well as new computational methods:
-
Particle Size Distribution analysis with reliable
automatic or visually assisted choice of regularization level
-
Distribution Peak Analysis gives full information
about individual peaks in the computed distribution
-
Robust, GLSA based multi-exponential analysis
(up to four components) with automatic choice of initial conditions
-
Cumulant Analysis with variable number of cumulants
Dynals v2.0 includes many other new features that make in unique software for data analysis:
-
Simultaneous plot of experimental data, residuals,
computed particle size distribution and its peak analysis as well as graphical
representation of multi-exponential and cumulant analysis
-
Simultaneous analysis and overlapping presentation
of results for several experimental data sets greatly simplifies comparison without
using any external software
-
Simultaneous analysis and results presentation
of experimental data by different processing methods provides additional
confidence in the results
-
Export of results in text format or in one of popular image formats
-
Export of result into file or clipboard for easy
import into documents, presentations and image handling software
-
External control interface allows running and
controlling Dynals v2.0 from other applications
Dynals v2.0 support several types of input data formats:
- Simple data format (*.dat)
- Tagged Data Format (*.tdf)
- PhotoCor
Instruments data format (*.txt)
- Brookhaven data format (*.dat)
- ALV data format *.asc)

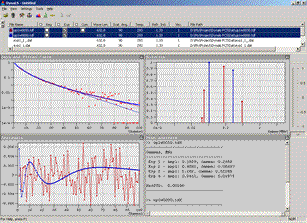

Dynals v2.0 screenshot examples
Press one of the thumbnails to
get the full image

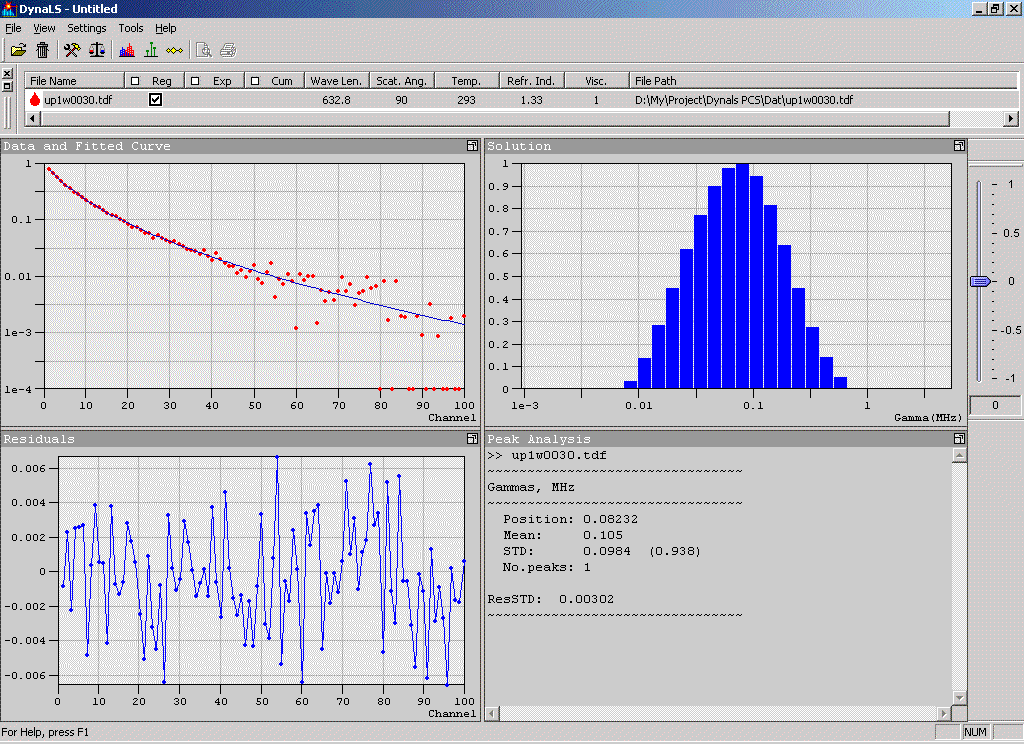

Distribution Analysis with optimal resolution
|

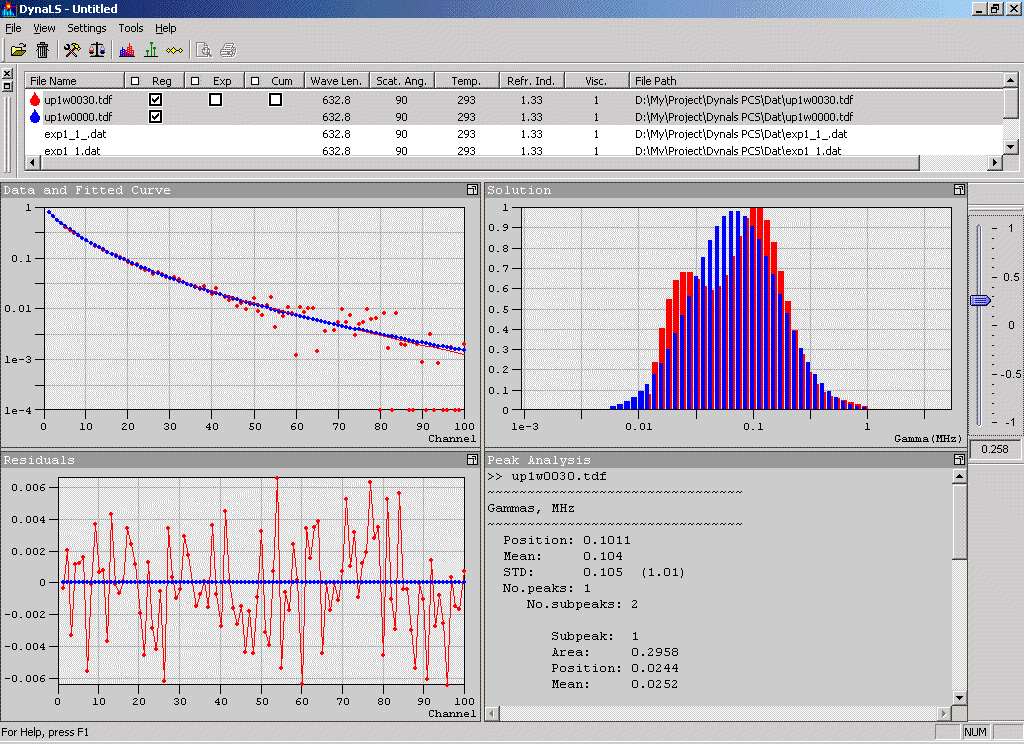

Distribution Analysis for multiple selection
|

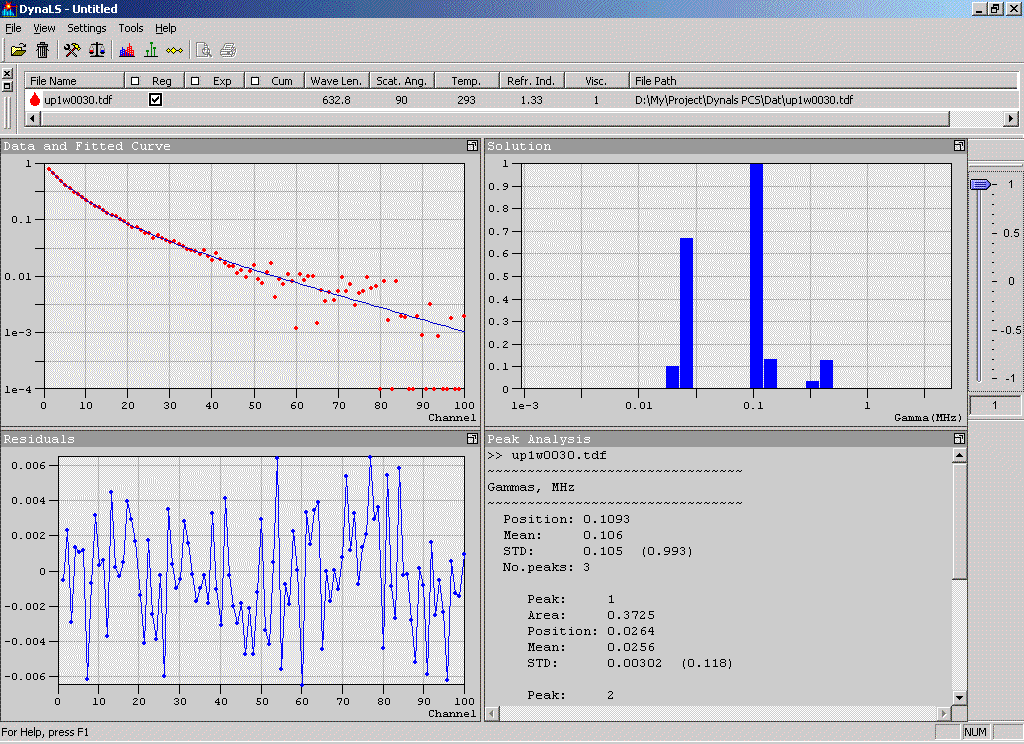

Distribution Analysis with high resolution
|

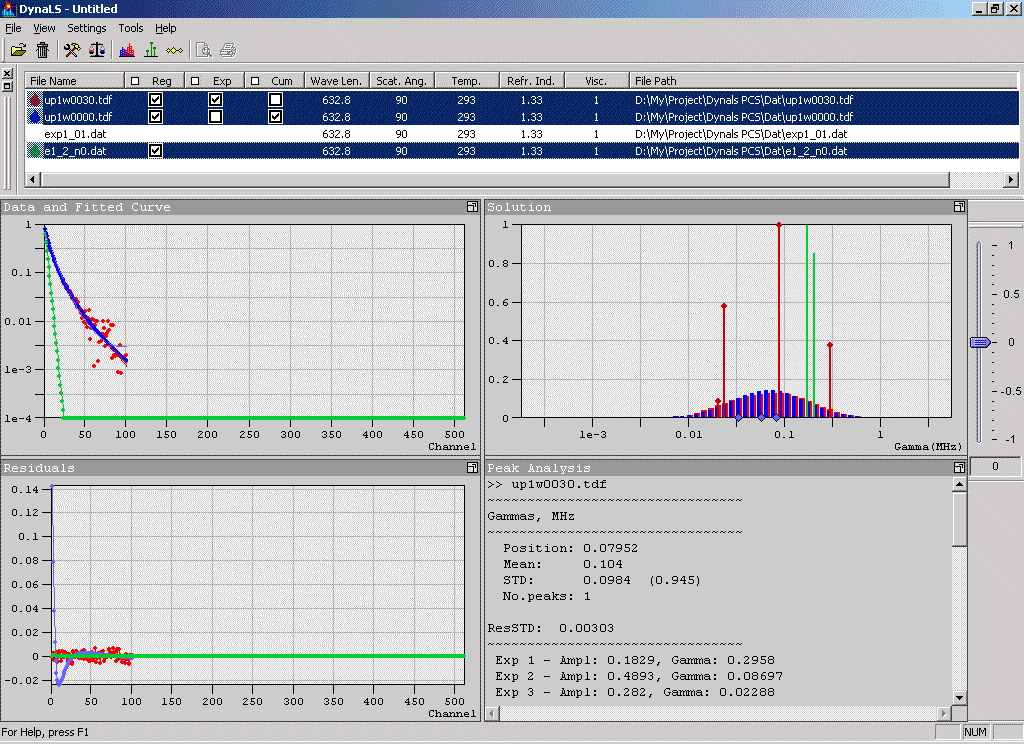

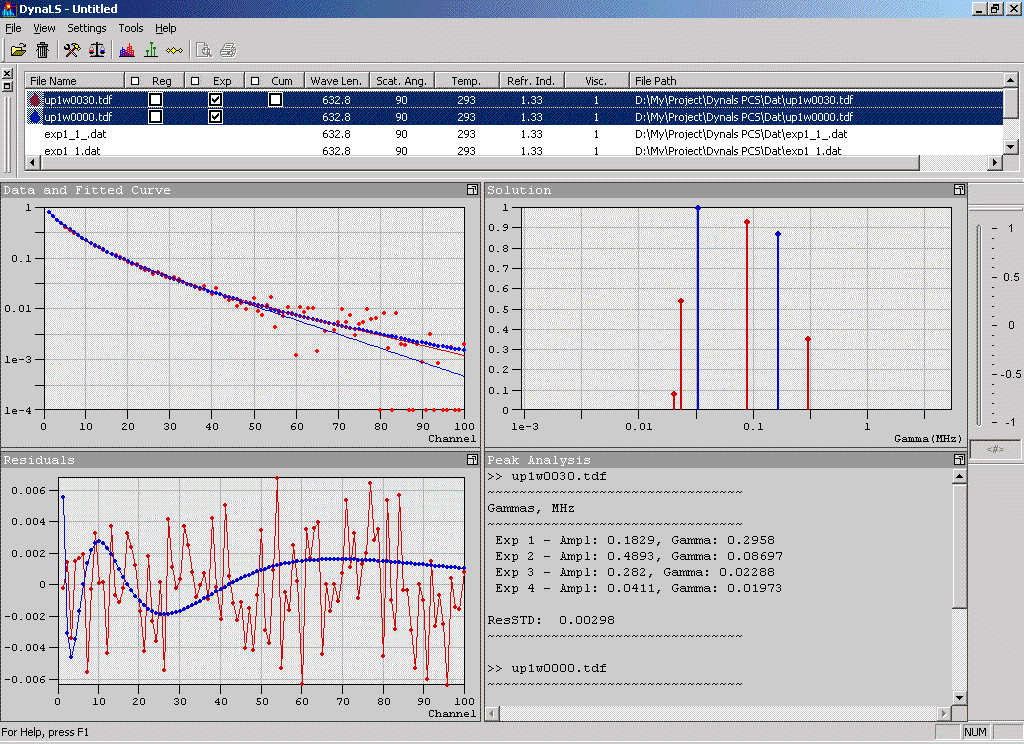

Discrete Components Analysis for multiple selection
|

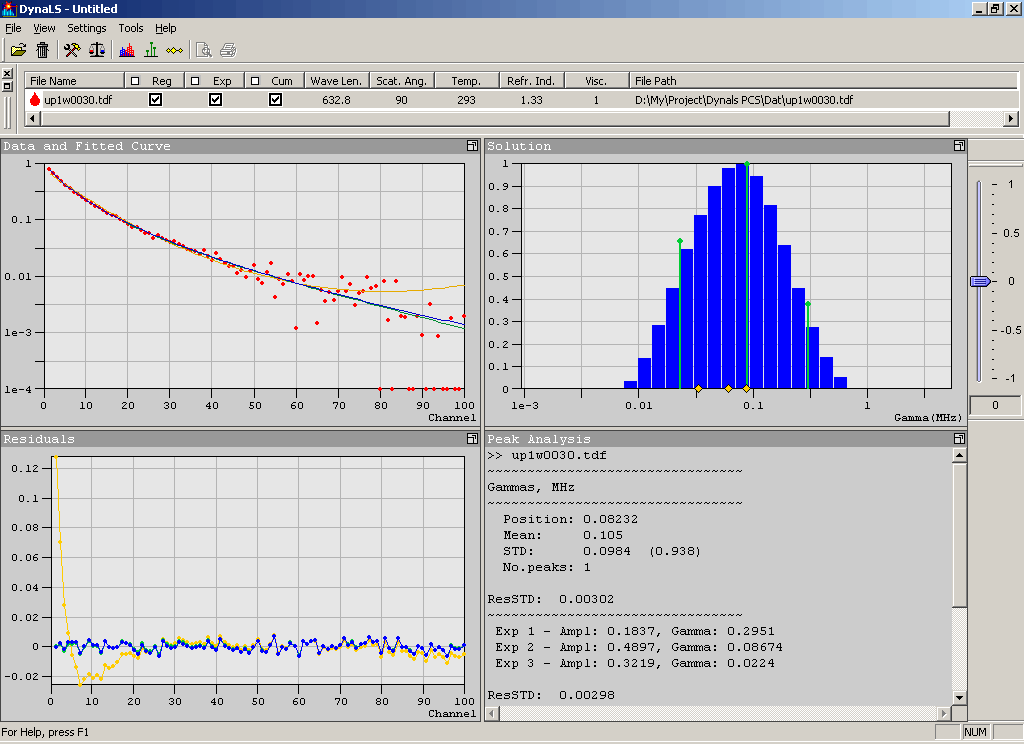

Multiple Analysis of one data file
|
Multiple Analysis for multi-selection
|
You may get more information by Viewing
Dynals v1.0 white paper (online)
You may also download
Dynals v2 latest release.
You may purchase Dynals
from SoftScientific directly (contact sales@softscientific.com
for price quotation and other information) or via Dynals distributors.
